UC2

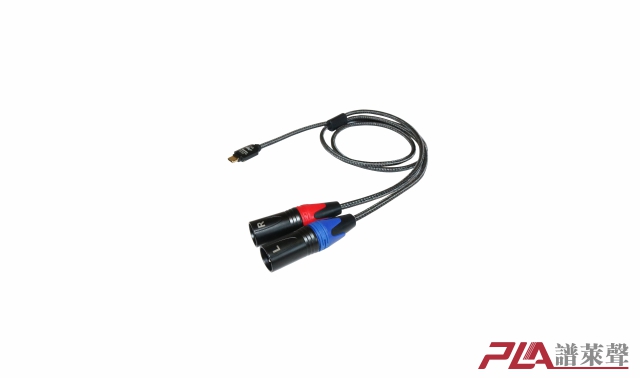

       The dual-channel USBC audio interface adopts customizedType C and XLR .XLR gold-plated plugs to ensure a solid connection and stable data transmission. Equipped with the latest professional DAC chip, it supports common lossless audio output PCM encoded 32Bit/384KHz and DSD encoded audio, whichcan truly restore lossless sound quality. With hard-core decoding capability, it can decode DSD format and present rich details.Optimized circuit design and shielding technology to reduce the bottom noise, to ensure the purity of the sound. With strong power output, it can easily drive high impedance headphoness and various preamplifier devices. At the same time, the use ofenergy efficient technology to reduce

energy consumption to  extend the life. In addition, it is compatible with a wide range of audio devices and formats, and operates stably to provide a reliable connection and experience.

Technical characteristics

● Using the highest-order USB interface and DAC integrated professional digital audio, with DUAC (Digital USBS Audio Conversion Technology) professional audio digital conversion technology chip,support for common lossless audio output PCM encoding 32Bit/384KHz, while supporting DSD

encoding audio, decoder 64/128 (DOP) true restoration of lossless sound quality, enjoy high-definition audio

●Use customized gold-plated plug more solid, better data transmission, more stable

●Support original MQA file decoding by playing MQA format audio

●Hardcore decoding Support DSD format decoding, which can present high-resolution audio and restorerich music details.

●Metal casing through optimized circuit design and shielding technology to effectively reduce the bottom noise, so that the sound is pure and natural, to avoid external interference

●Powerful power output capability, can easily drive high impedance headphoness, to achieve excellentdynamic performance

●Adopting energy efficient chips and technologies to ensure performance while reducing energy consumption and extending the life of the device

●Accurately analyzes audio signals, realizes lossless transmission, and ensures high fidelity of sound quality.

●Compatible with a wide range of audio devices and formats, ensuring stable system operation and providing a reliable connection and experience.

●Compatible with Windos, ioses, androids and Hongmeng operating systems, plug-and-play drivers

Specifications

●Sample Rate：32KHz~384KHz

●DSD Lossless Decoding：Dop64,Dop128

●Output：2Vrms@600ohm

●Total Harmonic Distortion (THD)：-105dB

●Frequency Response：20~40000Hz(-0.18dBA)

●Signal-to-Noise Ratio：+119dB

●Dynamic Range：118dB

●Output Voltage：2Vrms Max

●Crosstalk：-126dB @32ohm

●Standby Power Consumption：≤0.08W

●Output Impedance：16~600Ω

●DAC Sample Rate：32bit/384KHz

●DSD：2.8MHz for DSD64 over PCM(DOP)

             5.6Mhz for DSD128 over PCM(DOP)
