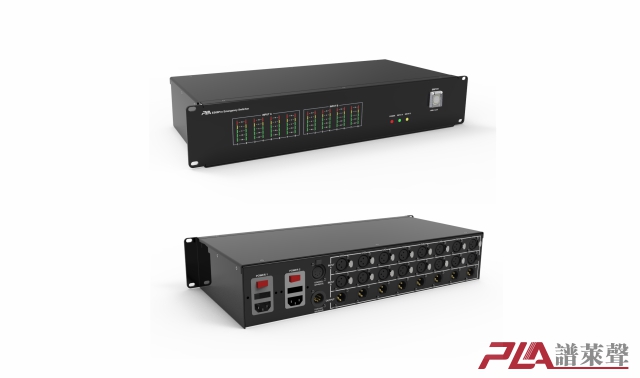

ES08Pro Emergency Switcher

The ES Series of Main and Backup Switchers are designed for audio systems that are arranged to flexibly switch between main and backup system input signals. They are designed with all standard XLR connectors and feature patented FT0 (Four To 0ne) seamless switching technology.

The professional broadcast-quality master/backup system switcher provides demanding audio specifications, handling audio level signals up to +28dBu and featuring automatic pass-through power failure memory and cascade control.

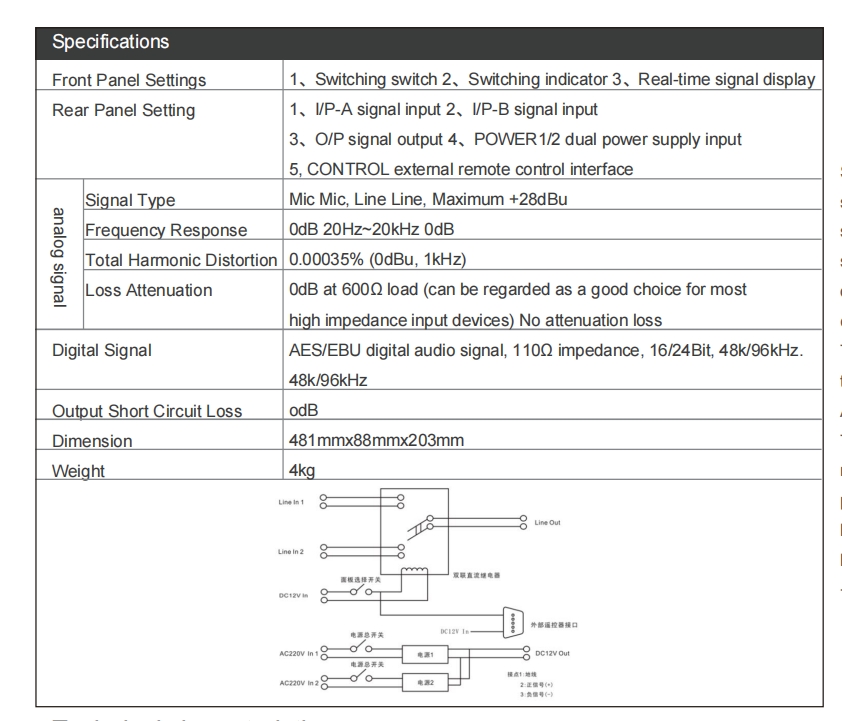

Technical characteristics

●8-channel A/B/C/D quad signal inputs

●Broadcast quality audio

●Operating level up to +28dBu

●Specially designed for broadcasting system

●Standard 2U-19-inch rackmount chassis

●Front and rear panels can be mounted in the same rack.

●Highly integrated, ruggedized all-metal body

●Power failure auto-pass-through function, in the event of power interruption emergencies Automatically switch to

   A main input signal continuous output

●Input/output signal type:

  1. Analog: Mic Mic/Line Line;

  2. Digital: AES/EBU digital audio signal (16/24Bit, 48k/96kHz, Impedance110Ω)

●Power failure memory function, restart automatically restored to the state before the power failure

●With cascade control interface to realize multiple online expansion control

●With FTO four-selective seamless switching patented technology

●Dual power supply for main and backup
